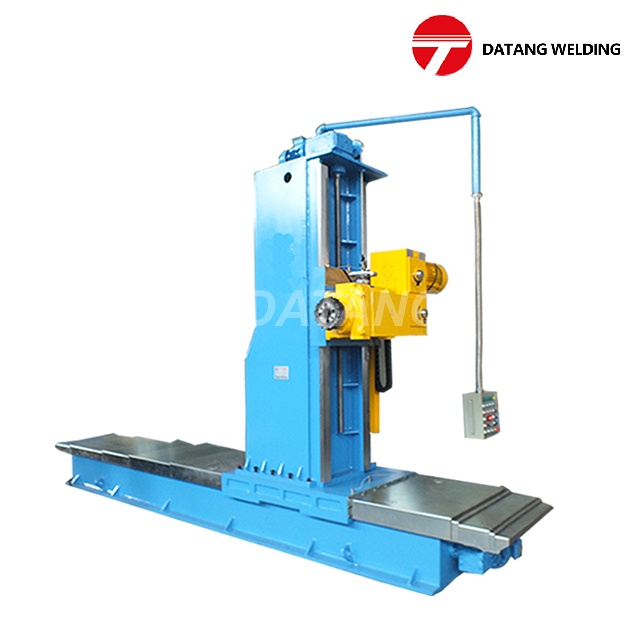

The face milling machine consists of milling and cutting head, elevator column work table, lathe bed, mechanical feeding system, electrical control system, rail protection device, tools etc.
The machine is used to mill the end face of Box-beam and H-beam. And the degree of milling head can be adjusted manually in vertical direction to bevel the end face. The hydraulic support rack for choice can fix the beam and is open top, which is easy for hoisting.
Model | DX-0810 | DX-1215 | DX-2030 | DX-2540 |
End-face Machining rage(mm) | 800*1000 | 1200*1500 | 2000*3000 | 2500*4000 |
Horizontal milling speed(mm/min) | 50-440 | |||
Vertical milling speed(mm/min) | 22-550 | |||
Milling angle(°） | 0-45 | |||
Milling head size | TX25A | TX32A | ||
Milling facer rotation speed(rpm) | 125-630 | |||
Suitable milling facer diameter(mm) | 125-250 | |||
Voltage | 380V-3PH-50HZ (other voltage can customized) | |||
Options：1.drilling&milling heat 2.three axis digital display | ||||
