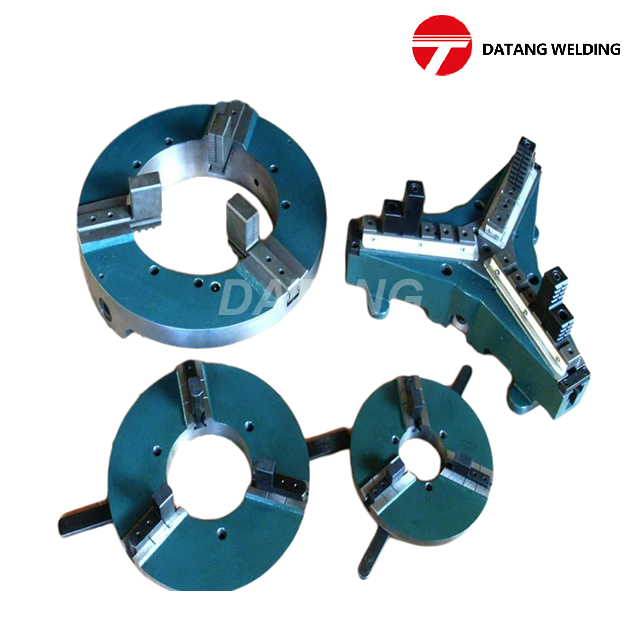

The 3 jaw chuck is using to hold the workpiece while welding.
This series chuck are famous of the high accuracy,light weight structure.convenience and comfort in operation,great carrying capacity,so it will not be deformed and occur mergence of crash.
This series chuck can achieve the self-centering and quickly clamped.
WPT TYPE MANUAL WELDING CHUCK CONNECTION PARAMETERS
Model | Clamping Range | Connect ions | Capacity | Weight | |
Positive Claw | Reverse Claw | ||||
WPT600 | Φ85-530 | Φ170-615 | 3-M16*120 | 1000KG | 68KG |
WPT1000 | Φ5-950 | Φ170-1080 | 6-M16*130 | 1000KG | 140KG |
WP TYPE MANUAL WELDING CHUCK CONNECTION PARAMETERS
Model | D1 | D2 | D3 | D4 | H | H1 | H2 | L | Z-d | Clamp strength (kg) | Load capacity (kg) | Clamping Range A | Clamping Range B | Extend Clamping Range |
WP-200A | 65 | 82 | 100 | 200 | 67.5 | 39 | 21 | 180 | 6-M6
| 200 | 30 | Φ110-210 | Φ10-130 | Φ5-300 |
WP-200 | 85 | 100 | 120 | 200 | 67.5 | 39 | 21 | 200 | 200 | 30 | Φ110-210 | Φ80-130 | ||
WP-300 | 100 | 120 | 150 | 300 | 67.5 | 39 | 21 | 240 | 250 | 120 | Φ170-280 | Φ80-190 | Φ10-400 | |
WP-400 | 170 | 220 | 250 | 400 | 95 | 45 | 25 | 300 | 350 | 240 | Φ250-380 | Φ120-250 | Φ20-50 | |
WP-500 | 240 | 280 | 320 | 500 | 110 | 60 | 25 | 350 | 800 | 600 | Φ360-500 | Φ200-340 | Φ40-600 | |
WP-600 | 365 | 400 | 425 | 600 | 170 | 105 | 40 | 425 | 6-M12 | 1200 | 1000 | Φ400-620 | Φ150-410 | Φ40-1500 |
WP-750 | 515 | 543 | 570 | 750 | 170 | 105 | 40 | 500 | 1400 | 1200 | Φ550-800 | Φ980-580 |
