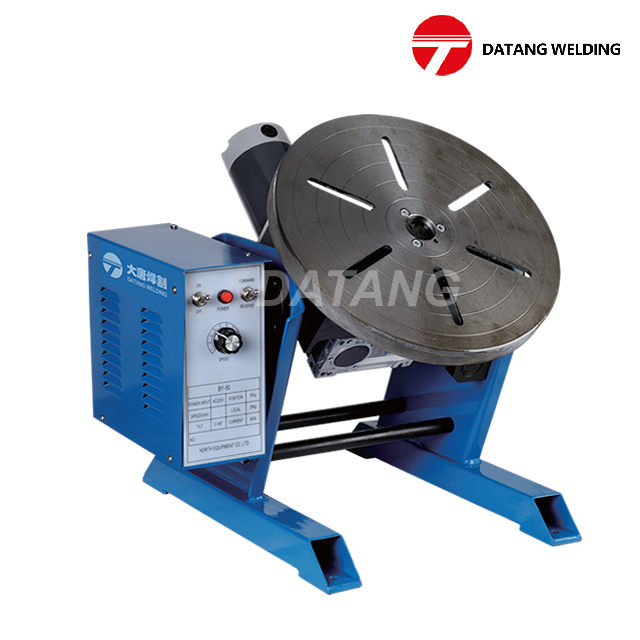

Welding positioner consists of working table rotation unit and tilting unit. By the working table elevating, the workpiece can be positioned and achieve the welding position by the worktable tilting and rotating.
Technical Parameter | Model | ||
HB01 | HB05 | HB1 | |
Rated loading | 10Kg | 50Kg | 100Kg |
Worktable size | Φ180mm | Φ320mm | Φ360mm |
Tilting angle | 0°～＋90° | ||
Rotating speed | 1～8rmp | 1～15rmp | 0.2～5rpm |
Rotating Power | 15W | 100W | 120W |
Speed adjusting way | DC | ||
