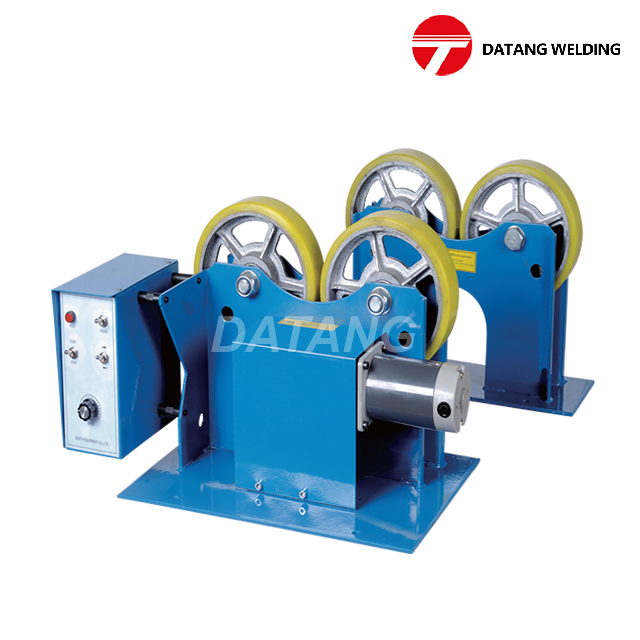

Light welding Rotator include 1Ton and 3Ton models.
One set Rotator with 1 drive roller and 1 idler roller, electrical system and foot switch.
Model | DZG1 | DZG3 |
Voltage | AC220V，50/60Hz | |
Max loading | 1,000kg | 3,000kg |
Rotating speed | 80～1100mm/min | 100～1900mm/min |
Workpieces diameter | Ф20～Ф800mm | Ф30～Ф1200mm |
Motor power | 220V、120W | 220V、370W |
Wheels size | 50mm(W)×Ф250mm | 50mm(W)×Ф200mm |
Drive roller size | 500*300*400mm | 850*330*450mm |
Idler roller size | 500*200*400mm | 850*330*450mm |
