Our welding rotators are designed on the basis of international advantage, they are required equipment of pressure vessel manufacturers.Theserotators are applied in both handling and automatic welding, widely to use to make pressure vessel and pipeline.

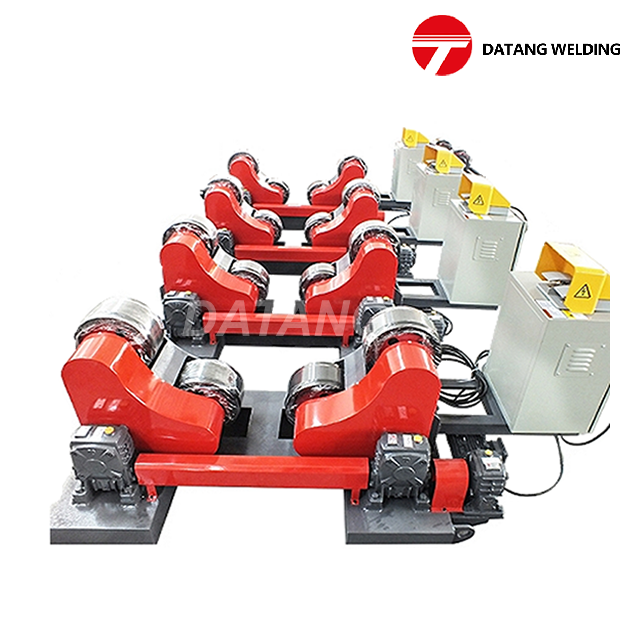

Self-aligning welding rotator can adjust the wheels’ angle automatically as per the diameter of workpieces.This series rotators can satisfy jobs with different diameter, the speed adjusting by VFD (INVERTER).it is low-sound and gentle Turning.
Model | DZG-5 | DZG-10 | DZG-20 | DZG-40 | DZG-60 | DZG-80 | DZG-100 |
Unit Loading (T) | 5 | 10 | 20 | 40 | 60 | 80 | 100 |
Min Job Dia (mm) | φ250 | φ320 | φ500 | φ600 | φ750 | φ850 | φ1000 |
Max Job Dia (mm) | φ2300 | φ2800 | φ3500 | φ4200 | φ4800 | φ5000 | φ5500 |
PU wheel dia (mm) | φ250 | φ300 | φ350 | φ400 | φ450 | φ500 | φ500 |
PU wheel width(mm) | 100 | 120 | 150 | 160 | 180 | 180*2 | 180*2 |
Linear speed (m/h) | 6-60 | ||||||
Motor power (kw) | 0.75 | 1.1 | 1.5 | 3 | 4 | 4 | 5.5 |
Speed adjusting way | VFD | ||||||
