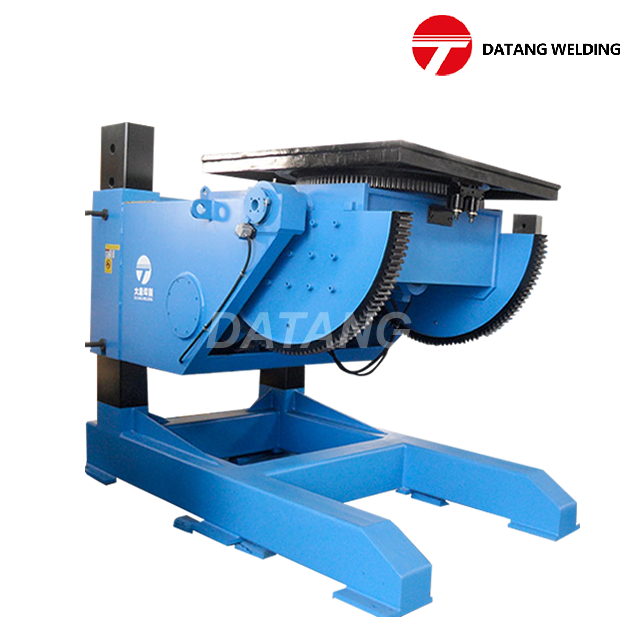

This series positioners are manual elevating positioner, they can be tilting, rotating and also adjust height, so that work pieces will be good height and position for welding.
This equipment can be equipped with all kinds of automatic welders and manual welders. It is perfect equipment for pressure vessel, metallurgy, electric power, chemical machinery and metal construction industries etc.
Technical Parameter | Model | ||||||||
HBJ10 | HBJ20 | HBJ40 | HBJ60 | HBJ80 | HBJ100 | HBJ150 | HBJ200 | ||
Rated loading (T) | 1 | 2 | 4 | 6 | 8 | 10 | 15 | 20 | |
Max eccenteric Distance(mm) | 150 | 200 | |||||||
Max distance of Gravity center (mm) | 250 | 300 | 400 | ||||||
Work table size (mm) | Φ900 | Φ1200 | Φ1400 | Φ1500 | Φ1600 | Φ1800 | Φ1800 | Φ2000 | |
Tilting angle (°) | 0°～＋135° | 0°～＋120° | |||||||
Rotating speed (rpm) | 0.12～1.2 | 0.05～0.5 | 0.02～0.2 | ||||||
Rotating Power(KW) | 1.1 | 1.5 | 2.2 | 3 | 4 | ||||
Tilting speed (rpm) | 0.67 | 0.23 | 0.23 | 0.14 | 0.1 | ||||
Tilting Power（kW）： | 1.5 | 2.2 | 3 | 4 | 5.5 | 7.5 | |||
