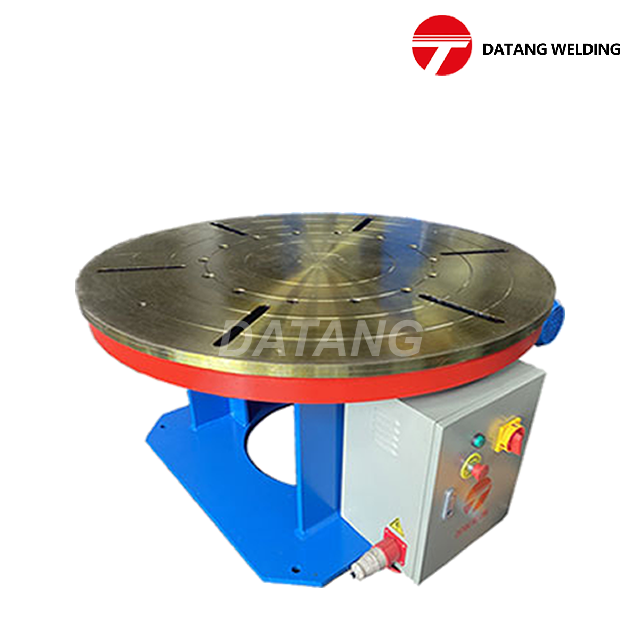

This welding equipment is specialized for requirement of welding technology. It has rotate motor of VFD which makes the work piece welded at the suitable position and rotating speed.
Model | ||||||||||
HBT3 | HBT5 | HBT10 | HBT20 | HBT30 | HBT50 | HBT100 | HBT200 | |||
Max load capacity(kg) | 300 | 500 | 1000 | 2000 | 3000 | 5000 | 10000 | 20000 | ||
Worktable size(mm) | Φ600 | Φ800 | Φ1000 | Φ1200 | Φ1400 | Φ1500 | Φ1800 | Φ2000 | ||
Max eccentricity Distance(mm) | 100 | 200 | ||||||||
Rotating speed(rpm) | 0.1~1 | 0.05~0.5 | ||||||||
Rotating Power(kw) | 0.18 | 0.37 | 0.75 | 1.1 | 1.5 | |||||
Speed adjusting way | Rotating speed by VFD(inverter) | |||||||||
Voltage | 380V-50HZ-3PH(other voltage can customized) | |||||||||
