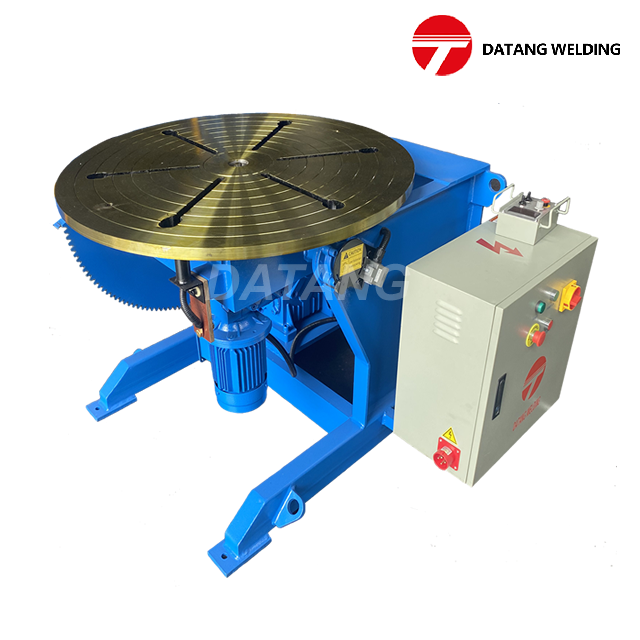

Welding positioner withe tilting and rotating function, which can make Work piece mounted on the worktable to ideal position for welding or assembling. Worktable rotating speed by VFD (inverter)to achieve satisfactory welding speed.
For the reason of eccentric-distance and gravity-center-distance, longer work pieces and bigger gravity-center work pieces should choose large models. If standard welding positioner cannot meet the jobs, please contact us for special design.
Additional options:
1. Foot switch (Double pedal or single pedal);
2. Welding Chuck;
3. Wireless controller.
Technical Parameter | Model | |||||||||
HB05 | HB1 | HB3 | HB6 | HB12 | HB30 | HB50 | HB100 | HB150 | HB200 | |
Rated loading (Kg) | 50 | 100 | 300 | 600 | 1200 | 3000 | 5000 | 10000 | 15000 | 20000 |
Max eccenteric Distance(mm) | / | / | 100 | 200 | 200 | 250 | 250 | |||
Max distance of Gravity center (mm) | / | / | 150 | 200 | 300 | 400 | 500 | 600 | ||
Worktable size (mm) | Φ320 | Φ360 | Φ600 | Φ1000 | Φ1200 | Φ1400 | Φ1500 | Φ1800 | Φ2000 | Φ2200 |
Tilting angle (°) | 0°～＋90° | 0°～＋120° | ||||||||
Rotating speed (rpm) | 15 | 5 | 0.1～1 | 0.05～0.5 | 0.03～0.3 | |||||
Rotating Power(KW) | 0.12 | 0.12 | 0.18 | 0.75 | 0.75 | 1.5 | 2.2 | 3 | 4 | 5.5 |
Tilting speed (rpm) | 0.8 | 0.5 | 0.3 | 0.14 | ||||||
Tilting Power（kW）： | 0.75 | 1.1 | 2.2 | 3 | 4 | 5.5 | 7.5 | |||
Speed adjusting way | Rotating speed VFD | |||||||||
Tilting speed constant | ||||||||||
