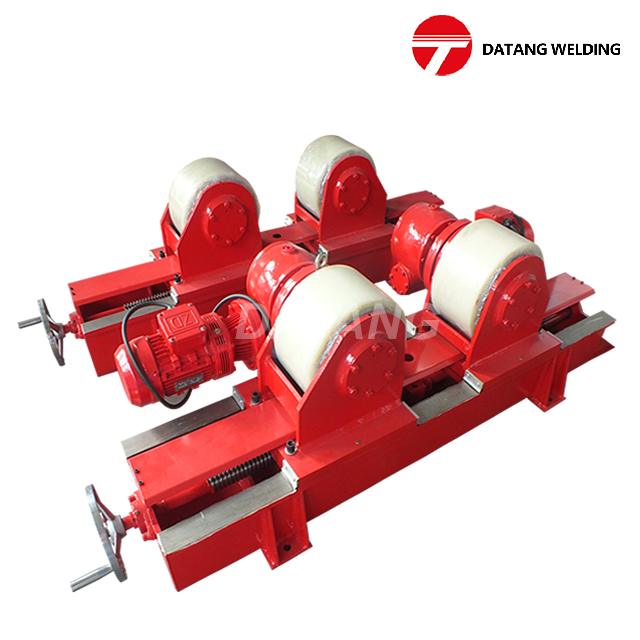

Lead Screw adjustable Welding Rotator an change the center distance by adjust lead screw. They can be controlled with AC frequency converter, Which rotating speed is widely, advanced and reliable. We also can design the special type of the turning-rolls in accordance with the customer’s requirement.
Model | DSK2 | DSK5 | DSK10 | DSK20 | DSK40 | DSK60 | DSK80 | DSK100 | ||
Unit Loading (T) | 2 | 5 | 10 | 20 | 40 | 60 | 80 | 100 | ||
Min Job Dia (mm) | Φ150 | φ250 | φ320 | φ500 | φ600 | φ750 | φ850 | φ1000 | ||
Max Job Dia (mm) | Φ1800 | φ2300 | φ2800 | φ3500 | φ4200 | Φ4800 | φ5000 | Φ5500 | ||
PU wheel dia (mm) | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 550 | ||
PU wheel width(mm) | 80 | 140 | 170 | 200 | 200 | 180*2 | 200*2 | 220*2 | ||
Linear speed (m/h) | 6-60 | |||||||||
Motor power (kw) | 2×0.18 | 2×0.37 | 2×0.55 | 2×0.75 | 2×1.1 | 2×1.5 | 2×2.2 | 2×3 | ||
Speed adjusting way | VFD | |||||||||
