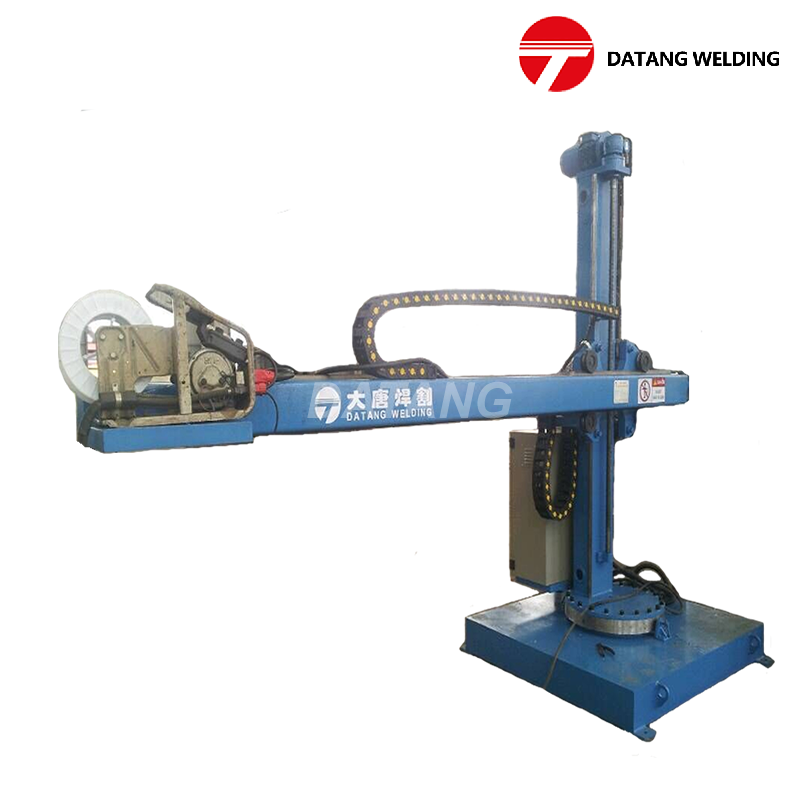

DATANG Welding manipulator includes fixed type, fixed with rotation type and traveling with rotation type.
The boom of machine can weld inside and outside seams of small tanks, also can welding longitudinal and transverse seams of big tanks.
It has some optional functions, such as Auto-tacking of welding arc.TV monitor. The flux recovering and conveying system etc.
Model | DLH0810 | DLH1015 | DLH1520 | DLH2020 |
Vertical elevation stroke (mm) | 800 | 1000 | 1500 | 2000 |
Boom retracting stroke (mm) | 1000 | 1500 | 2000 | 2000 |
Frame rotation angle (°) | ±180 | |||
Frame rotation speed (rpm) | manual | |||
Boom elevationg speed(m/min) | 1 | |||
Boom feeding speed (m/min) | 0.12～1.2
| |||
Trolley feeding speed (m/min) | manual | |||
Trolley rail span (mm) | 1000 | |||
