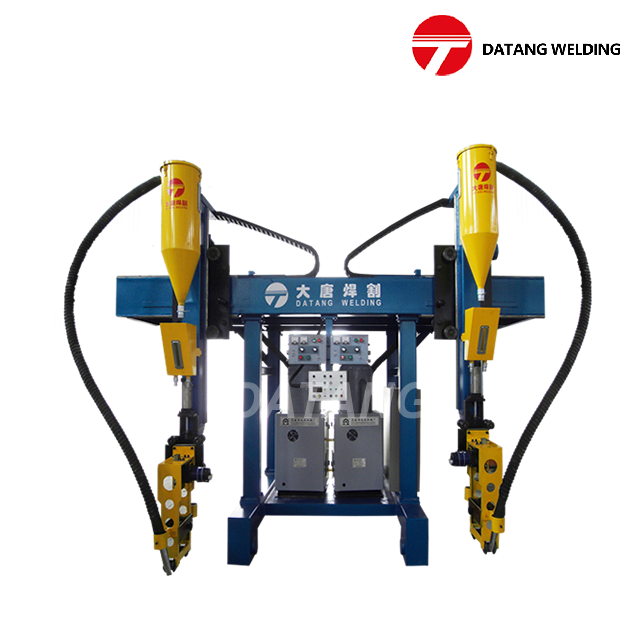

There are two models, gentry automatic welding machine and T gantry automatic welding machine. It adopts A.C. Inverter control with functions of stable running and fast traveling speed. The seam-tracking arc-guide mechanism is three-spindle system to guarantee the alignment without aberrancy. The main frame and welding machine are integrated control. With flux auto-recovering system and it is easy to operate with high efficiency. T gantry automatic welding machine can weld two pieces of beam at the same time, and the web height of beam is not limited by the main machine.
Models | DZA | DZT |
Height of web(mm) | 200-1200 | 200-2000 |
Height of flange(mm) | 200-800 | |
Length of H beam | 4000-15000(can be designed as required) | |
Welder model | MZ-1000 SAW welding power Wire feeding machine 2 unit | |
Welding form | ARC | |
Welding speed(mm/min) | 150-2500 | |
Back speed(mm/min) | 3000 | |
Rail distance(mm) | 4000 | 1400 |
Power(kw) | 13(welder is exclude) | |
Voltage | 380V-3PH-50HZ(other voltage can customized) |
