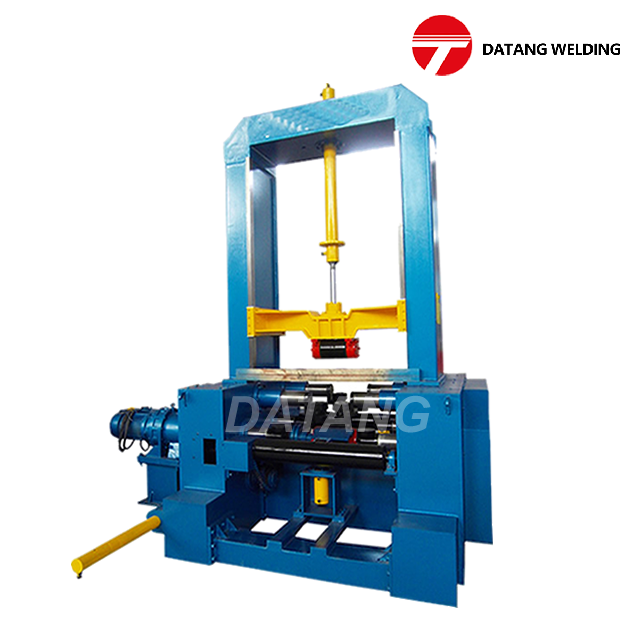

The machine’s process including clamping and alignment of web and flange, automatic tack-welding is controlled with PLC. Main machine is driven by A.C.inberter, Stable and reliable. Upper press-beam is guided thru left and right four rails, ensuring steady clamping of long time use.
Models | DZ-15 | DZ-18 | DZ-20 | DZ-25 |
Applicable height of H-beam web(mm) | 200-1500 | 200-1800 | 200-2000 | 200-2500 |
Applicable thickness of H-beam web(mm) | 6-32 | |||
Applicable length of H-beam web(mm) | 4000-15000 | |||
Applicable width of H-beam flange(mm) | 200-800 | |||
Applicable thickness of H-beam flange(mm) | 6-40 | |||
Applicable length of H-beam flange(mm) | 4000-15000 | |||
Assembling speed(mm/min) | 500-600 | |||
Power（kw） | 14（two motor is excluded） | |||
Voltage | 380V-50HZ-3PH(Other voltage can customized) | |||
