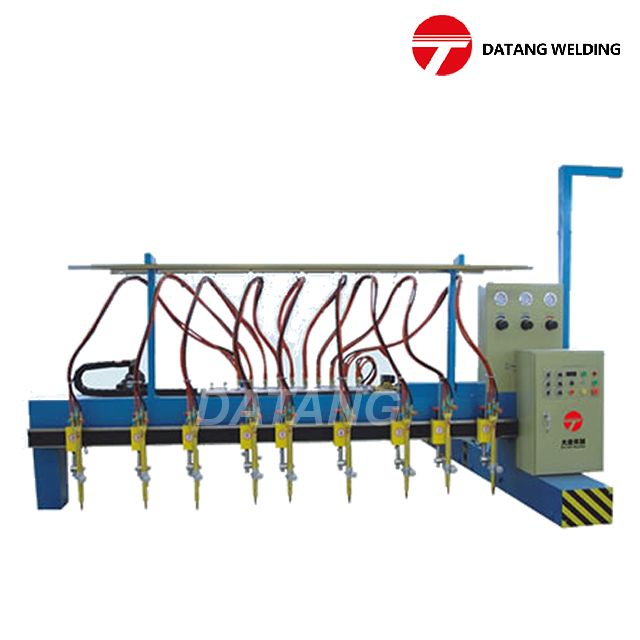

Multi-head strip cutting machine is a high efficient steel plate cutting machine made by our company especially for metal frame process. It is an ideal cutting equipment and cutting in both horizontal and vertical direction with high precision and small deformation.
Model | DTCG-4000 | DTCG-4500 | DTCG-5000 | DTCG-5500 | DTCG-6000 |
Rail distance(mm) | 4000 | 4500 | 5000 | 5500 | 6000 |
Valid Cutting Width(mm) | 3200 | 3700 | 4200 | 4700 | 5200 |
Rail length(mm) | 15000(Can be designed as required) | ||||
Valid cutting length(mm) | 12500(Can be designed as required) | ||||
Cutting speed(mm/min) | 50-1000(Speed adjust as per thickness) | ||||
Back speed(mm/min) | 4000 | ||||
Cutting thickness(mm) | 6-100(Single cutting torch 100mm) | ||||
Cutting precision(mm/m) | ±0.5 | ||||
Roughness of surface | Ra 12.5-25 | ||||
Cutting gas source | Oxygen and Acetylene or propane | ||||
Voltage | 220V-1PH-50HZ (Other voltage can customized) | ||||
